High Quality Embedded Installation 280KG 600LBS Magnetic Lock Access Control System 280kg EM Lock

Name: High Quality Embedded Installation 280KG 600LBS Magnetic Lock Access Control System 280kg EM Lock
Brand: ximiir
Price: 1 USD

Buy cheap High Quality Embedded Installation 280KG 600LBS Magnetic Lock Access Control System 280kg EM Lock product

Place of Origin : Guangdong,China(Mainland)

Brand Name : ximiir

Model Number : XM-280M

Size : 259Lx43Wx25H(mm)

Armature Plate Dimension : 180Lx38Wx11H(mm)

Holding Force : 280kg(350Lbs)

Input Voltage : 12 or 24VDC

Current : 12V/500mA or 24V/250mA

Suitable : Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp : ≤+20℃

Operating Temp : -10~+55℃(14-131F)

Humidity : Humidity

Weight : 2KGS

Price : Deliberation

MOQ : 1PC

Packaging Details : 1pc/box, 10pcs/carton

Delivery Time : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Payment Terms : L/C D/A D/P T/T Western Union MoneyGram

Supply Ability : 1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated

Contact Now

Product Description

Features:

1. Collinear Load Test 280kg,600pounds.
2. Dual Voltage 12 or 24 VDC(optional).
3. The Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.

Specifications:

Model	XM-280M
Size	259Lx43Wx25H(mm)
Holding Force	280kg(350Lbs)
Armature Plate Dimension	180Lx38Wx11H(mm)
Input Voltage	12V / 24V DC
Current	12V/500mA or 24V/250mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp	≤+20℃
Operating Temp	-10~+55℃(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum/Stainless Steel
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	2KGS

Detailed Images

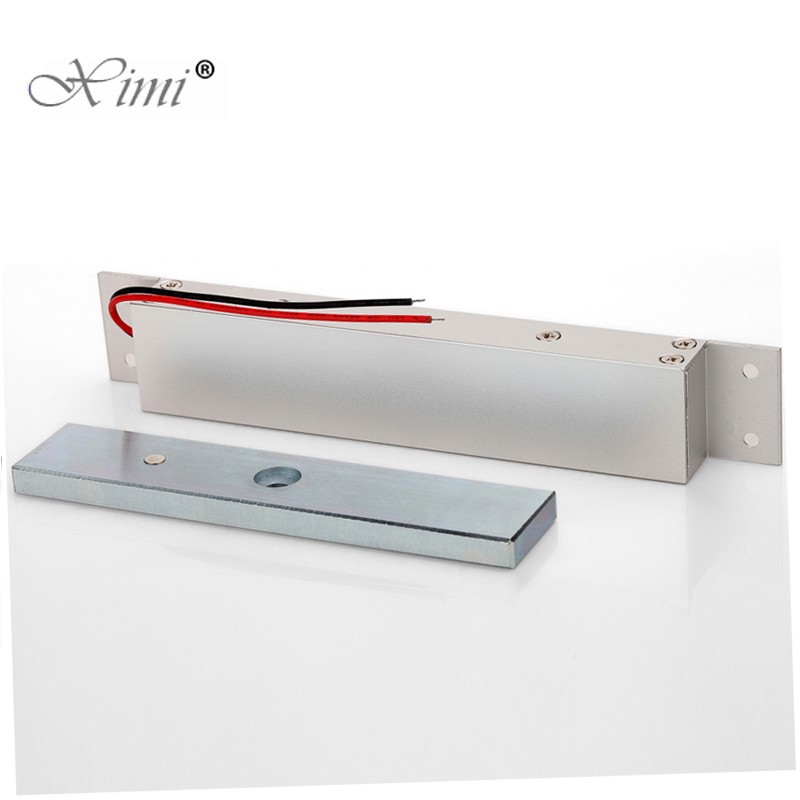

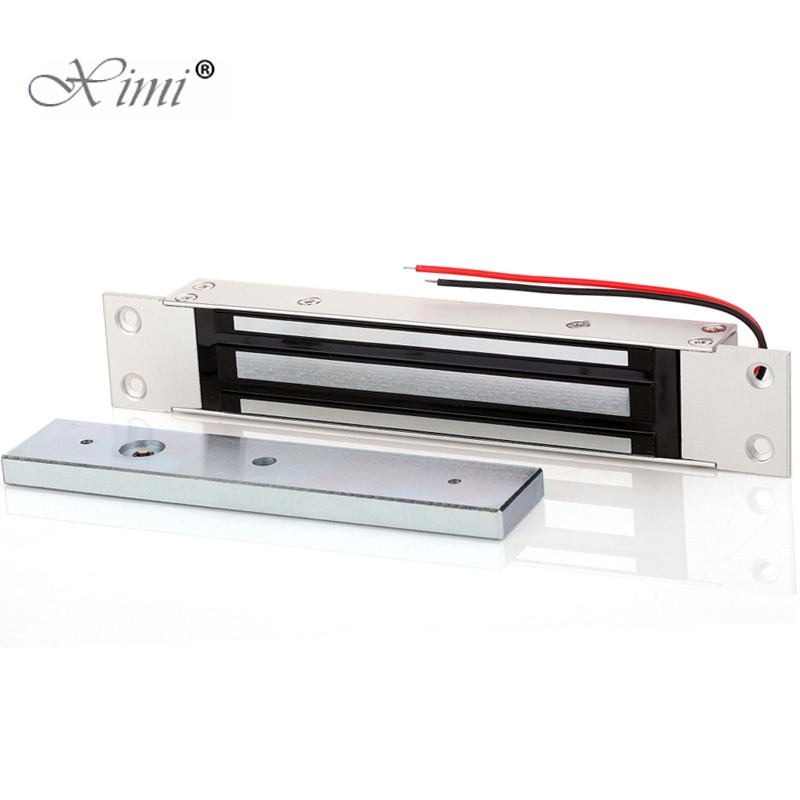

High Quality Embedded Installation 280KG 600LBS Magnetic Lock Access Control System 280kg EM Lock

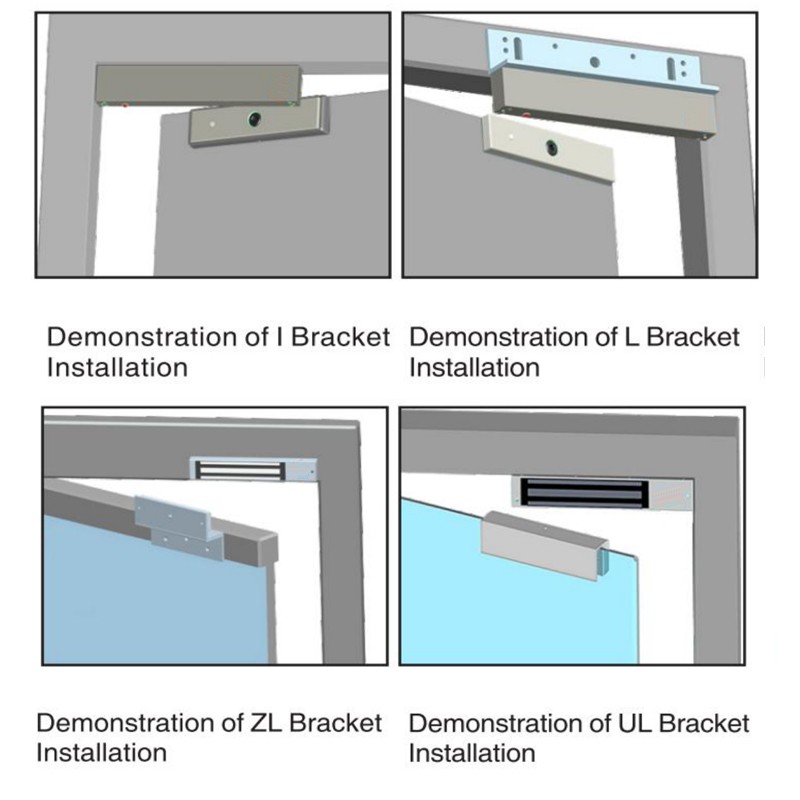

Installation

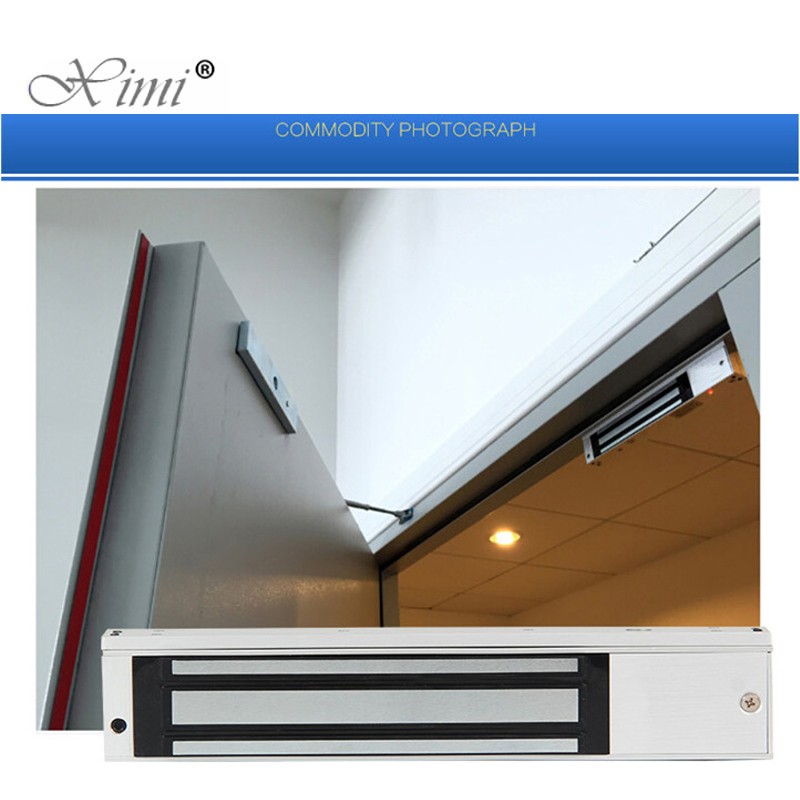

magnetic locking system

magnetic cabinet locks

High Quality Embedded Installation 280KG 600LBS Magnetic Lock Access Control System 280kg EM Lock Images
